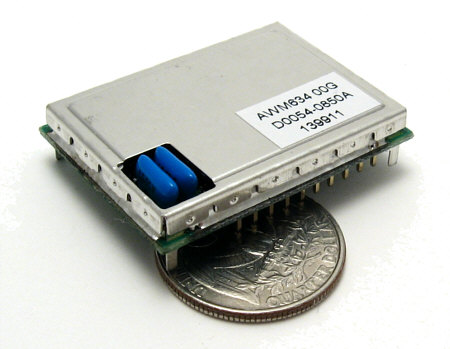

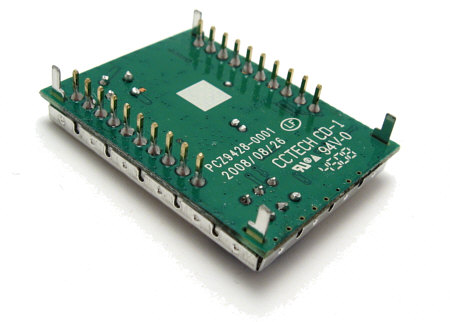

Short product information for CatCam® Live Video Receiver Module AWM634RX:

This module of 1.6x1.2x0.24 inches (40x30x6mm) receives a 2.4GHz RF signal and decodes 1 video signal and 2 audio signals in parallel. The signals can be feed directly to a TV. The supply voltage is 5V.

Resources: AWM634RX Datasheet, AWM633TX Datasheet, Example schematics for transmitter and receiver modules.
