       How to install the new controller board / Einbau der neuen Controllerplatine

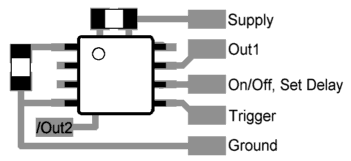

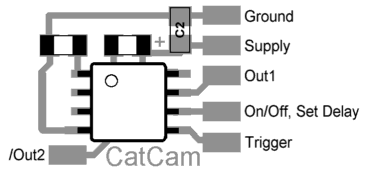

The pinouts of the controller boards are shown above. Left is the Rev. 1 board, right the new Rev. 2 board. The board offers convinient sized solder pads for easy soldering. For details on the function of the different signals see the controller datasheet. Die Pinbelegung der Controllerplatinen sind oben abgebildet. Links die erste Version, rechts die neue Version 2. Die Platine bietet angenehm grosse Lötflächen zum einfachen Anbringen der Leitungen. Für Details zu den einzelnen Signalen bitte im Datenblatt des Controllerchips nachschauen.

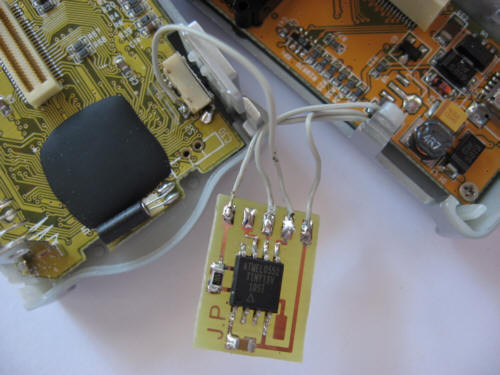

There is no difference using the controller board instead of the bare chip. Please follow the instructions for soldering the controller into the camera. Solder each signal from the camera to the pads described before. Es gibt keinen Unterschied bei der Verwendung der Controllerplatine anstatt des Controllerchips. Bitte befolgen Sie die Anweisungen zum Einbau des Controllerchips in die Kamera. Einfach die Kamerasignale an die zuvor beschriebenen Flächen der Platine löten.
